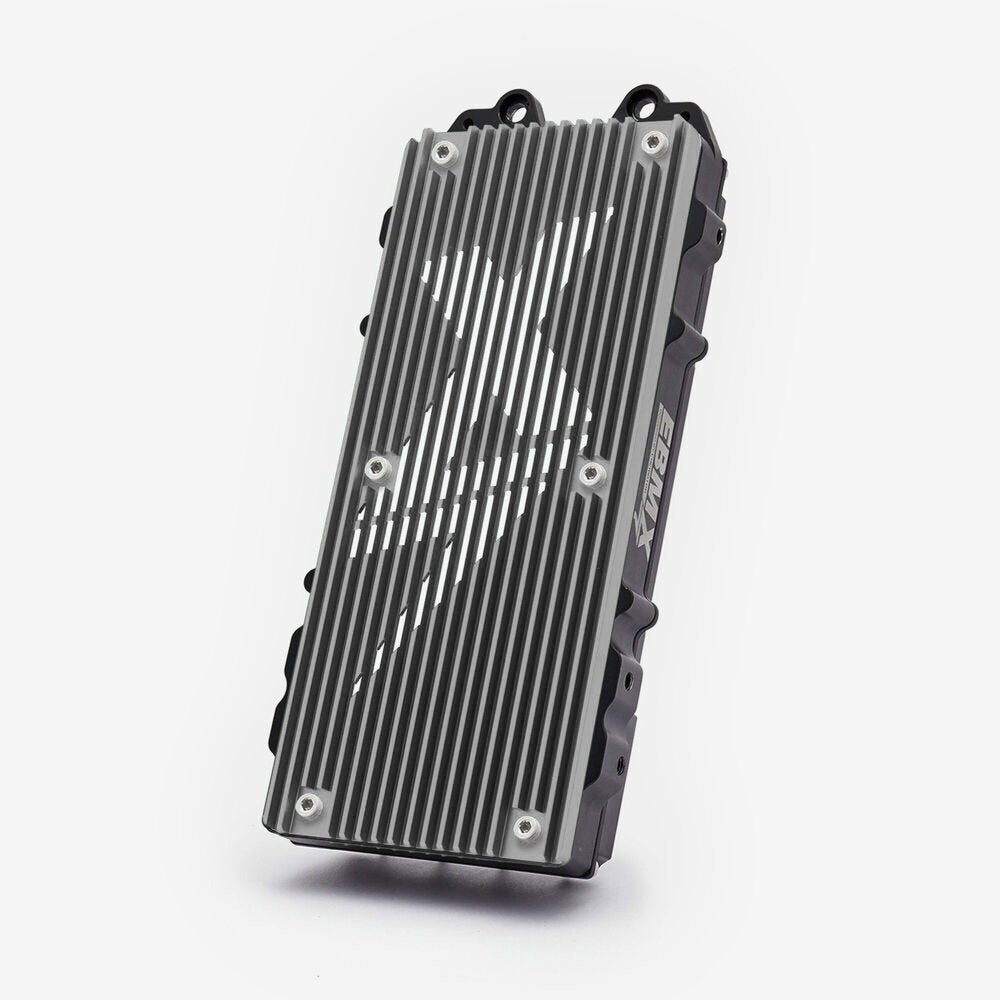

EBMX X-9000 Motor Controller Version 2 for Sur-ron Ultra Bee

EBMX X‑9000 Motor Controller Version 2 — for Sur‑ron Ultra Bee

Upgrade your Ultra Bee with precision power, tunability, and rugged reliability.

⚙️ Key Features & Benefits

• Fully tunable firmware allows control over power modes, throttle response, and regen settings.

• Programmable DC‑DC converter with multiple 12V outputs for accessories.

• Sealed, rugged IP67‑rated connectors and enclosure to withstand wet, dusty, and off‑road environments.

• Standard air‑cooled heatsink (colours available); options for upgraded cooling in some kits.

• Display included to show motor temperature, controller temperature, battery voltage, and other real‑time metrics.

• Heavy‑duty internal components designed to handle high currents and stress under aggressive use.

🔋 Electrical & Performance Specs

• Rated continuous power: ~40 kW

• Input voltage range: 40 ‑ 100 V

• Working voltage range: ~48 ‑ 93 V (22S battery systems)

• Continuous phase current: ~1000 A

• Burst phase current: ~1500 A

• Maximum battery current: ~500 A

• Efficiency: greater than 95%

• Operating temperature range: −25 °C to +80 °C

🧩 Compatibility

• Designed specifically for Sur‑ron Ultra Bee (OEM Ultra Bee model).

• Comes with the correct harness and mounting bracket for Ultra Bee in those kits that are “Ultra Bee” specific.

• When used in the Ultra Bee, no phase wire extensions or extra brackets are required in properly branded kits.

• Not compatible with Ultra Bee units using non‑matching harness setups without the correct adapter.
